    SENSA® Flex A4 CA

    Minimal space requirement and maximum comfort for your patients

  • [Translate to English:] Slide 1 Vordergrund Liegenposition (Sitz 1)

    SENSA® Flex A4 CA

    Seat position

    Stepless motorized adjustment

  • [Translate to English:] Slide 1 Vordergrund Liegenposition (Komfort 2)

    SENSA® Flex A4 CA

    Comfort position

    Stepless motorized adjustment

  • [Translate to English:] Slide 1 Vordergrund Liegenposition (Bett 3)

    SENSA® Flex A4 CA

    Bed position

    Stepless motorized adjustment

  • [Translate to English:] Slide 1 Vordergrund Liegenposition (Schock 4)

    SENSA® Flex A4 CA

    Shock position

    Stepless motorized adjustment

  • [Translate to English:] Slide 1 Vordergrund Liegenposition (Trend 5)

    SENSA® Flex A4 CA

    Trendelenburg position

    Stepless motorized adjustment

SENSA® Flex A4 CA

The chair with minimal space requirement and maximum comfort for your patients

SENSA Flex A4 CA has been developed for the specific needs in oncological day-care hospitals and the infusion and transfusion medicine as well as many other areas. It only requires very little space – but at the same time offers high stability and safety against overturning. The therapy chair SENSA Flex A4 CA convinces with stepless, motorized position adjustment of the back-, seat- and foot part. The additional seat part makes getting in and out even easier for the patient and makes the treatment for the staff easier.
Easy entrance and exit from the chair‘s front is patient-friendly possible due to the low seat height and simplified through the advantageously foot part and the present seat inclination.
For maximum comfort the chair is equipped with a central arrest which offers the possibility to loosen or lock the breaks with one leverage.

SENSA® Flex A4 CA is a TÜV SÜD certified therapy chair.

Features

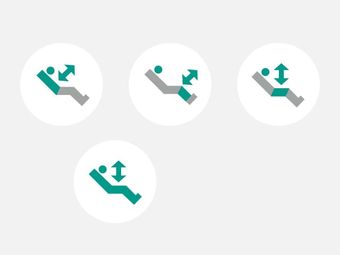

4 motors for adjustment of back, foot and seat part and height adjustment

4 motors for adjustment of back, foot and seat part and height adjustment

Hand switch A4 with buttons for basic settings (seat, shock/ Trendelenburg position) and magnetical locking function

Hand switch A4 with buttons for basic settings (seat, shock/ Trendelenburg position) and magnetical locking function

Low wedge-shaped foam armrests of imitation leather incl. hand switch holder, right and left

Low wedge-shaped foam armrests of imitation leather incl. hand switch holder, right and left

Armrests rotatable, folding upwards and tiltable

Armrests rotatable, folding upwards and tiltable

Central locking casters ∅ 10 cm

Central locking casters ∅ 10 cm

Upholstery universal (2-layer foam)

Upholstery universal (2-layer foam)

Neck roll in upholstery colour

Neck roll in upholstery colour

EU power plug

EU power plug

Safe working load 200 kg

Safe working load 200 kg

TÜV certified (tuv-sud.com/ps-cert)

TÜV certified (tuv-sud.com/ps-cert)

2 years guarantee

2 years guarantee

Options

Bag holder: Hook on the back part for storing bags

Bag holder: Hook on the back part for storing bags

CPR release for a quick reclining position to take life-saving measures without losing time

CPR release for a quick reclining position to take life-saving measures without losing time

Wedge-shaped foam armrests of imitation leather incl. hand switch holder, right and left

Wedge-shaped foam armrests of imitation leather incl. hand switch holder, right and left

Foam armrests of imitation leather incl. hand switch holder, right and left

Foam armrests of imitation leather incl. hand switch holder, right and left

Armrests with additional tilt adjustment

Armrests with additional tilt adjustment

Upholstery robust

Upholstery robust

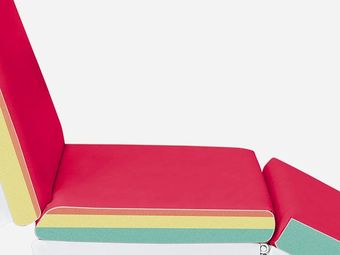

Upholstery (2- layer foam) with special soft back- and seat part

Upholstery (2- layer foam) with special soft back- and seat part

Antimicrobial surface for upholstery

Antimicrobial surface for upholstery for selected colours

Relax pillow in upholstery colour

Relax pillow in upholstery colour

Upholstery wedge between seat- and backpart

Upholstery wedge between seat- and backpart

Lumbar support

Lumbar support

Pressure relieving gel seat cushion

Pressure relieving gel seat cushion

Transparent, cleanable protective cover for foot part

Transparent, cleanable protective cover for foot part

Transparent, cleanable protective covers for all armrests

Transparent, cleanable protective covers for all armrests

Jersey stretch cover (washable) for upholstery, relax pillow and neck roll

Jersey stretch cover (washable) for upholstery, relax pillow and neck roll Jersey colour chart

Jersey stretch covers (washable) for all armrests

Jersey stretch covers (washable) for all armrests

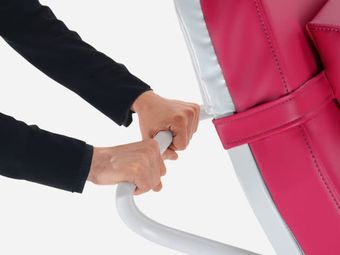

Push handle fixed

Push handle fixed

Infusion rod holder, right and left rotatable

Infusion rod holder, right and left rotatable

Infusion rod incl. Bottle holder

Infusion rod incl. Bottle holder

USB reading lamp

USB reading lamp

USB charging port

USB charging port

Tablet holder

Tablet holder

Swiveling table

Swiveling table

Paper roll holder

Paper roll holder

Grey holder with Velcro. Made of grey imitation leather and suitable for foam armrest pads

Grey holder with Velcro. Made of grey imitation leather and suitable for foam armrest pads

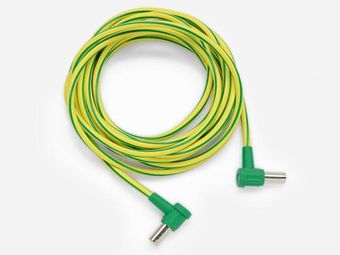

Equipotential bonding cable (absolutely necessary when using "intracardiac procedures")

Equipotential bonding cable (absolutely necessary when using "intracardiac procedures")

Battery

Battery

CH, GB, US, CN, BRA, ISR power plug - other power plugs on request

CH, GB, US, CN, BRA, ISR power plug - other power plugs on request



Only available for new orders

External content

This video is provided by YouTube. If you enable the content, cookies will be set and personal information may be transferred to third-party platforms. You must allow marketing cookies to view the video. Please see our privacy policy for more information.


Cookie-Einstellungen

Colours

Standard colours
Also available as antimicrobial upholstery. stone AB

stone

Also available as antimicrobial upholstery. saffron AB

saffron

Also available as antimicrobial upholstery. kiwi AB

kiwi

Also available as antimicrobial upholstery. agave

agave

Also available as antimicrobial upholstery. sapphire AB

sapphire

Also available as antimicrobial upholstery. azure AB

azure

Special colours
Also available as antimicrobial upholstery. cream AB

cream

Also available as antimicrobial upholstery. lemon AB

lemon

Also available as antimicrobial upholstery. lime AB

lime

purple

purple

Also available as antimicrobial upholstery. raspberry AB

raspberry

Also available as antimicrobial upholstery. red AB

red

Also available as antimicrobial upholstery. chestnut AB

chestnut

chrome

chrome

Also available as antimicrobial upholstery. anthracite AB

anthracite

Also available as antimicrobial upholstery. black AB

black

Technical Data

Armrest pads length x width x height
Full foam armrest pads60.5 cm x 13.5 cm x 4.5 cm
Foam armrest pads52.5 cm x 15.5 cm x 8.5 cm
Low wedge-shaped foam armrest pads52.5 cm x 15.5 cm x 6.5 – 9.5 cm
High wedge-shaped foam armrest pads52.5 cm x 16.5 cm x 7.5 – 12.5 cm
Upholstery length x width x height198,7 cm x 53,5 cm x 7 cm
Total length (max.) x width198.7 cm x 84.4 cm
Ground clearance
with casters ∅ 10.0 cm93 mm
Seating height with height adjustment
Adjustment range21 cm
with casters ∅ 10.0 cm57 cm - 78 cm
Angle of inclination
Shoulder area0° – 81°
Loin area-20° – 61°
Seat part7° – 20°
Foot part-77° – 20°
Angle of inclination Trendelenburg position
Shoulder area0°
Loin area-20°
Seat part20°
Foot part20°
Upholstery material
UV-proof, impermeable to moisture, checked for biocompatibility and toxicity, flame retardant and has a particularly long life.

Colour metal frame/covers
light grey RAL 7047

Colour upholstery
stone, saffron, azure, kiwi, agave, sapphire

Special colours see colour chart

Colour full foam armrests
grey

Colour foam armrests
stone, saffron, azure, kiwi, agave, sapphire

Special colours see colour chart

Casters
Central locking ∅ 10 cm

Motorised adjustment
Back part

Seat part

Foot part

Height adjustment

Battery

Equipotential bonding terminal

Power rating, primary
100 - 240 V AC, 50/60 Hz

29 V Power rating, secundary

Fuses internal

Protection type hand control unit: IP X6

Protection type controller: IP X4

Protection class II

Duty cycle 2 min ON/18 min OFF

Consumption in standby< 2 W
EL equipment/EMC: DIN EN 60601-1, 60606-1-2

Spiral power cable 2.0 m – 3.5 m

Permitted air pressure 800 – 1060 hPa

Ambient temperature 10° – 40° C

Emission sound pressure level < 65 dB(A)

Medical device classI
Applied parts type B (CF limit values in compliance)

Safe working load200 kg
Weight (without options)75 kg
2 years guarantee



standard option
